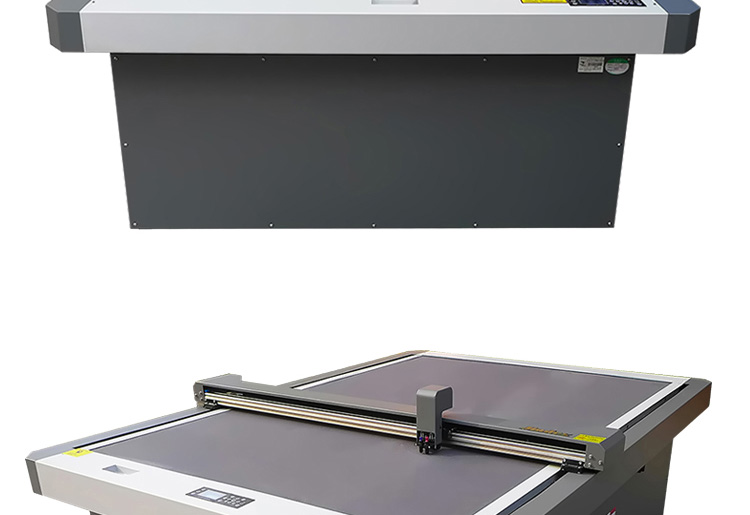

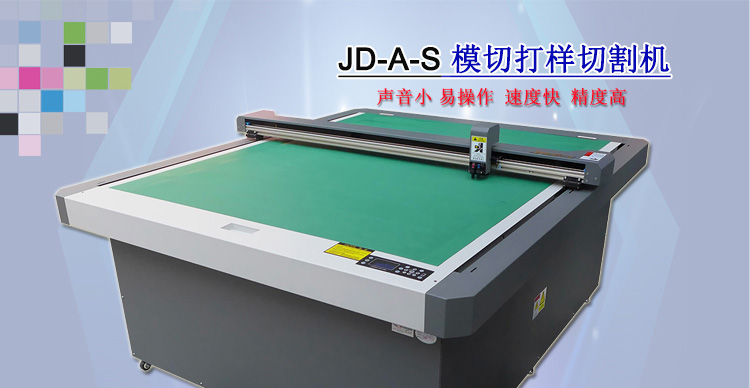

Electronic Materials Die-Proofer Machine JD-A-S Series

Type：: Electronic screen film
Model：: JD-A-0906S、JD-A-1209S、JD-A-1512S

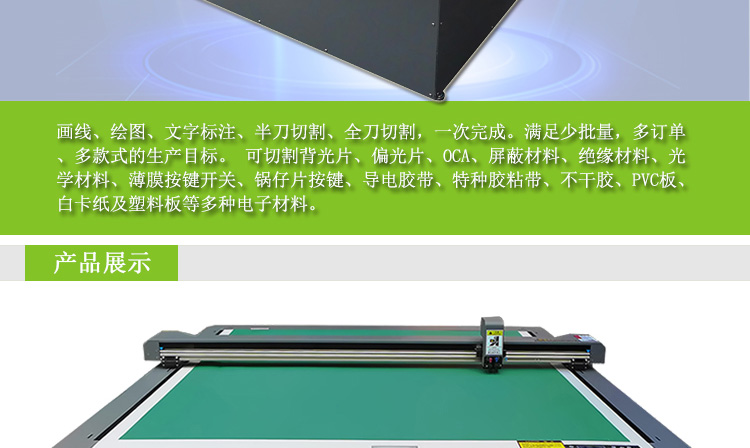

Intro：: Line drawing, drawing, text annotation, half knife cutting, full knife cutting, a complete. Meet the production target of less batch, more orders and more styles. A variety of electronic materials are cuttable such as backlight, polarizer, OCA, shielding material, insulating material, optical materi
Contacts：: 18923737801(wechat)

DOWNLOAD

FEEDBACK

Function and Special Features

◇ Line drawing, drawing, text annotation, half knife cutting, full knife cutting, a complete. Meet the production target of less batch, more orders and more styles.

◇ The transmission system adopts imported linear guide rail, high speed, high precision, low sound, stable quality.

◇ Static board original imported parts from Japan, other parts and components also used a large number of imported products.

◇ The fastest cutting speed up to 1200mm/s.

◇ StandardI/O interface, in HP-GL format.

◇ Optional loading rack and automatic feeding device.

◇ Any CAD software can be connected, widely used in clothing, shoes, bags and handbags, laser knife mold drawing, lighting, advertising gifts, adhesive, color box packaging and other industries drawing and cutting.

Electronic Materials Die-Proofer Machine JD-A-S Series Technical Parameters Standard Table
Technical Parameters/Model	JD-A-1209S	JD-A-1509S	JD-A-1512S
Operating Characteristic	Computer operation and machine cutting can be performed simultaneously, as well data transmission can be completed quickly and used continuously.
Cutting Speed	Up to 1200mm/s
Cutting Thickness	≤2.0 MM
Cutting Material	Flexible circuit boards, shielding materials, insulating materials, optical materials, membrane button switches, pot buttons, conductive tape, special adhesive tape, stickers, PVC board, white cardboard and plastic plate,etc.

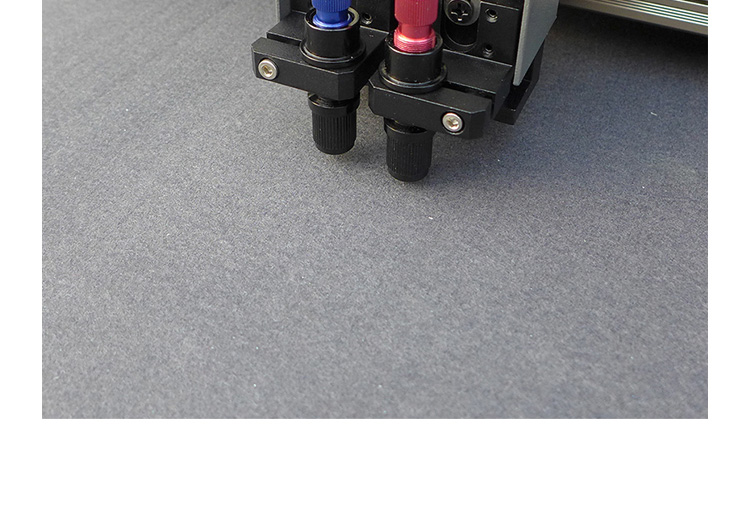

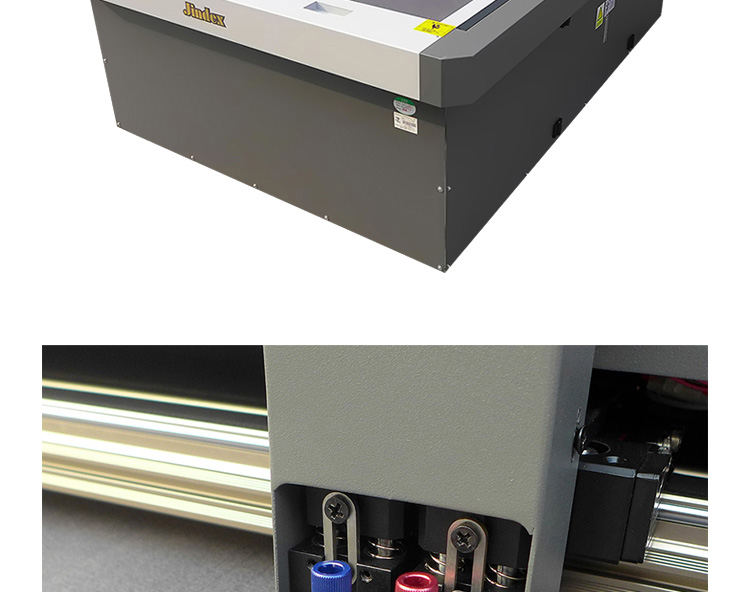

Cutting Method	Multi-purpose knife holder, 4 sets of different strokes, half-knife, full-knife settings
Pen Type/Knife Type	Ordinary signature pen, oil pen, ball pen / Special steel knife
Fixed Way	Double-sided adhesive paste / vacuum adsorption / electrostatic adsorption
Mechanical Resolution	0.005 mm
Software Resolution	0. 025mm、0. 01mm、0. 1mm optional
Cutting Circular Diameter	≧2mm diameter
Transmission Interface	Standard parallel port, serial port
Format Compatible	AI software, Autocad, Coreldraw and all box design software can be directly output without conversion, with automatic optimization
Command System	HP-GL&GP-GL
CNC Panel	Liquid crystal display and contact buttons
Transmission Material	Linear guide, imported synchronous belt
Voltage and Power	AC 220V ± 10%, 50HZ; Fuse Size 6A
Cutting Area	1200mm*900mm	1500mm*900mm	1500mm*1200mm
Appearance Size	1580x1330x920mm	1850x1330x920mm	1850x1610x920mm
